AMERICOPP · TECHNICAL CASE 004

IT LOOKED LIKE THE HEADLIGHT.
THE FAULT WAS THE FRM.

A light that would not turn on seemed to point to the bulb or headlight assembly. Access required disassembly, but testing proved the actual cause was in the FRM module, which manages vehicle lighting outputs.

SymptomBMW headlight not operating

Initial suspicionBulb or headlight assembly

Confirmed causeFRM module fault

Disassembly is not diagnosis

Restricted access turned an apparently simple check into a disassembly job. Reaching the bulb and headlight was only part of the process. Circuit testing determined that the assembly was not the root cause: the lighting command from the FRM was the failure point.

Confirmed cause: the fault was in the FRM (Footwell Module), responsible—depending on the BMW platform—for managing lighting functions and monitoring output circuits.

Diagnostic principle: before replacing a bulb, igniter, ballast or complete headlight, verify power, ground, command and FRM output status. A headlight that is off does not prove the headlight itself has failed.

How the cause was identified

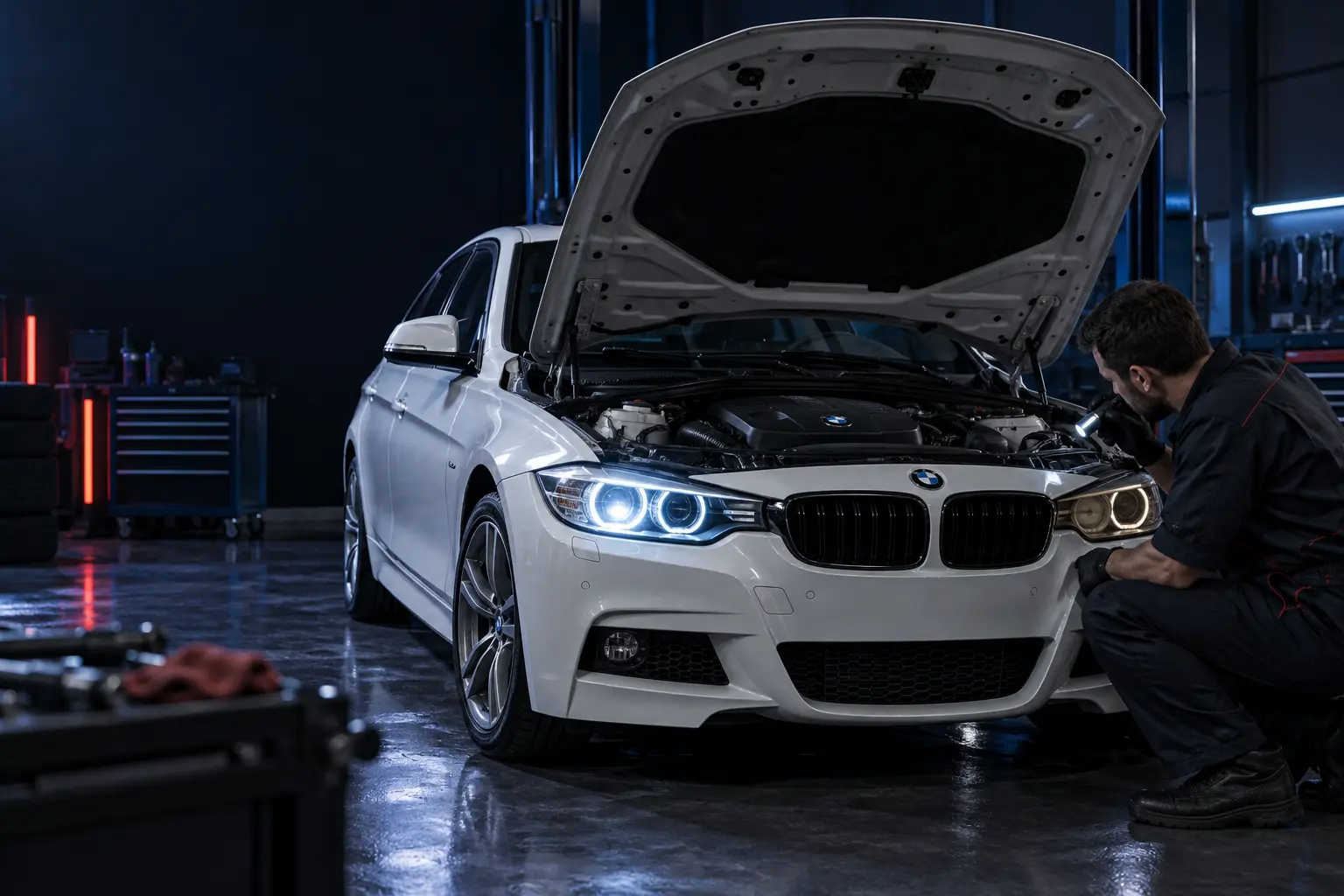

1 · SymptomOne light does not operate correctly.

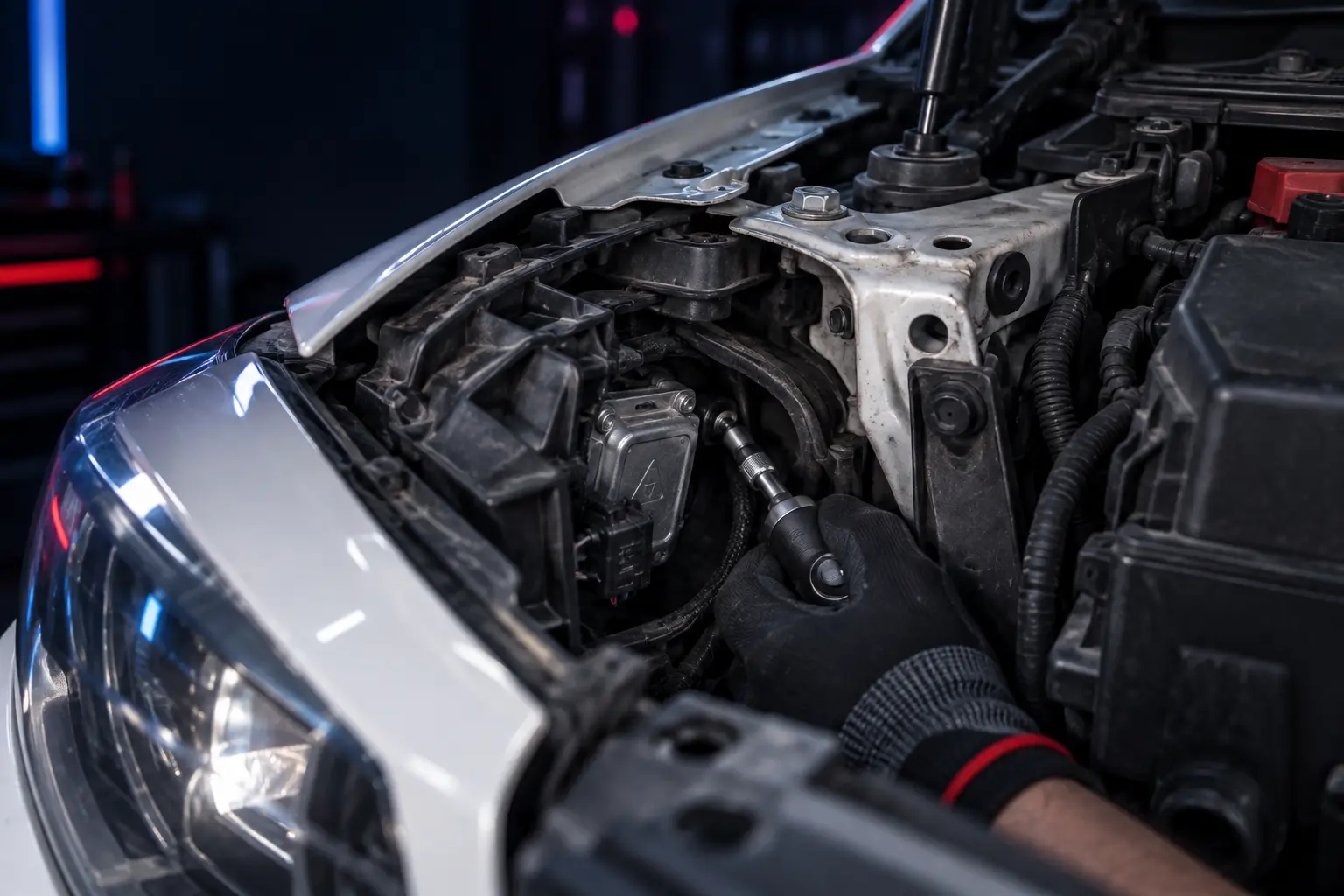

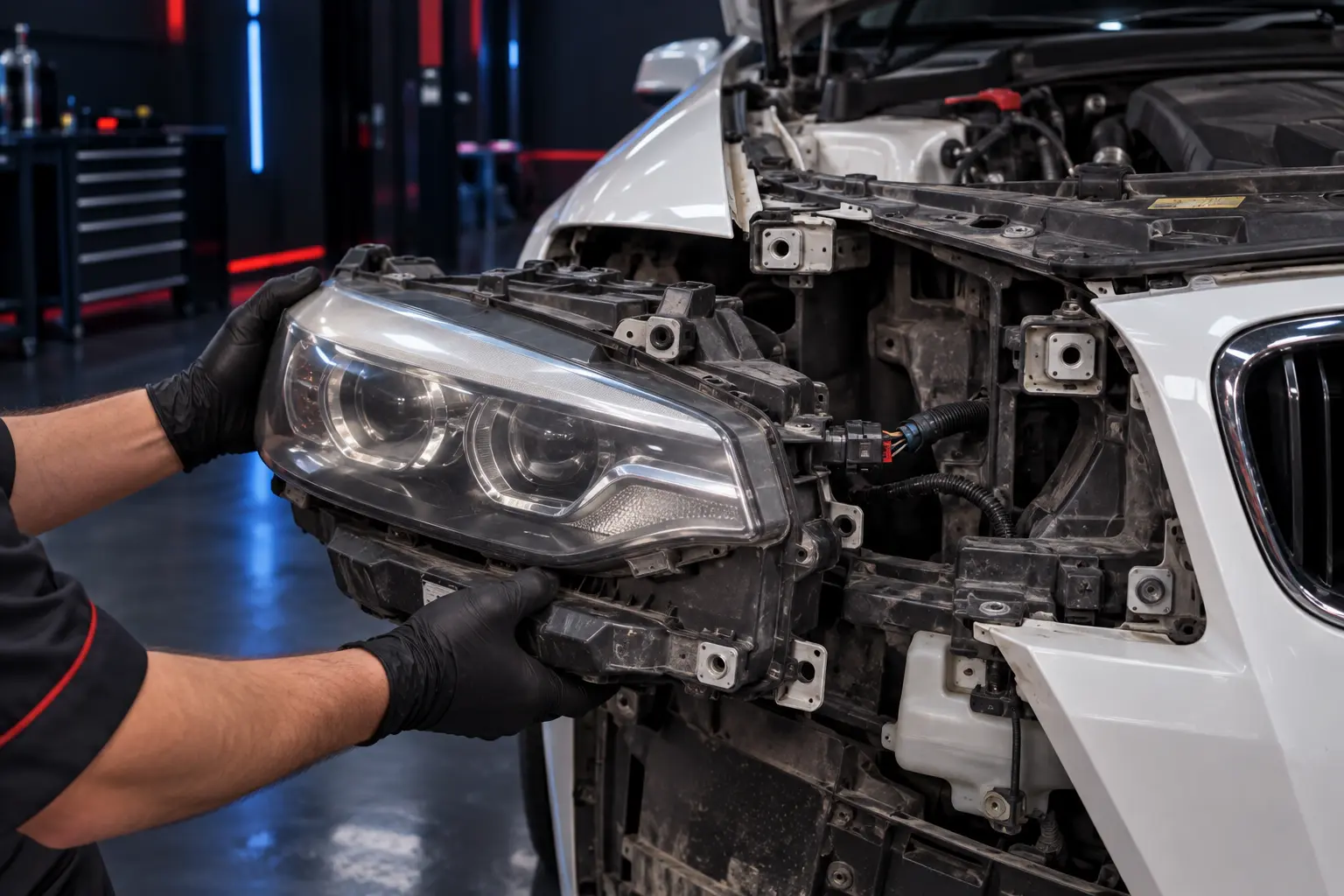

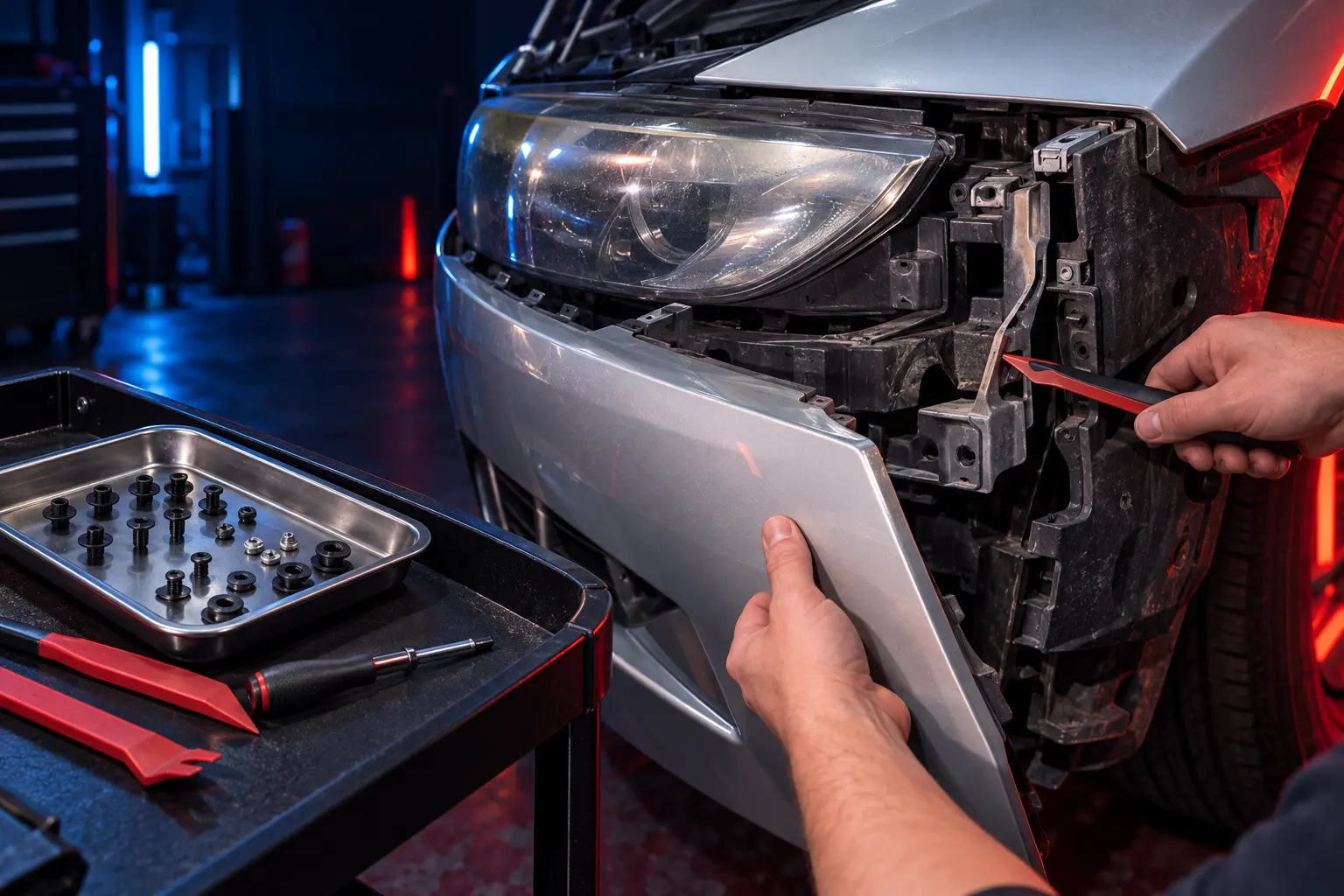

2 · AccessControlled disassembly allows inspection without damage.

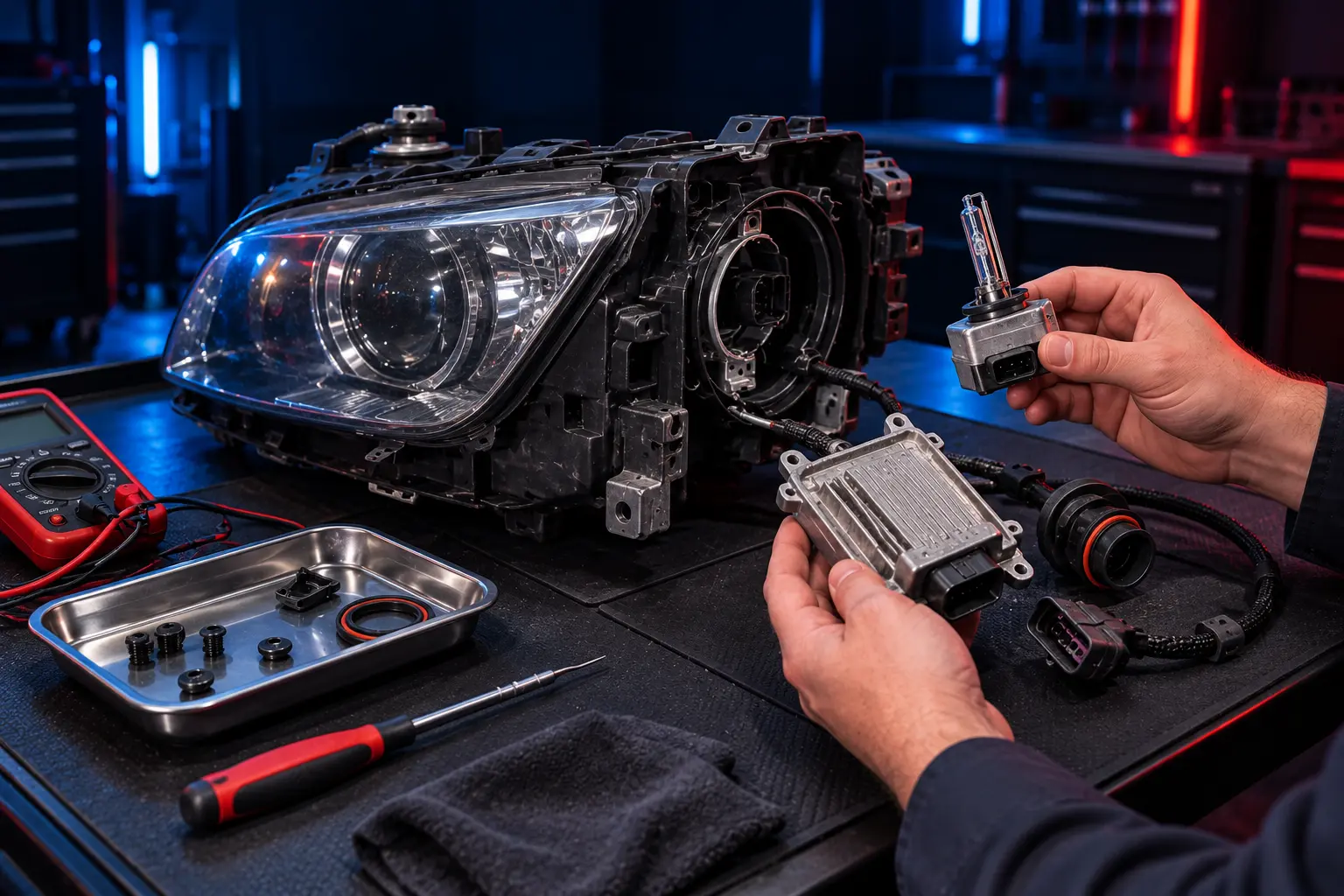

3 · EliminationThe bulb, igniter, connections and headlight module are checked.

4 · CauseThe fault is located in the lighting output controlled by the FRM.

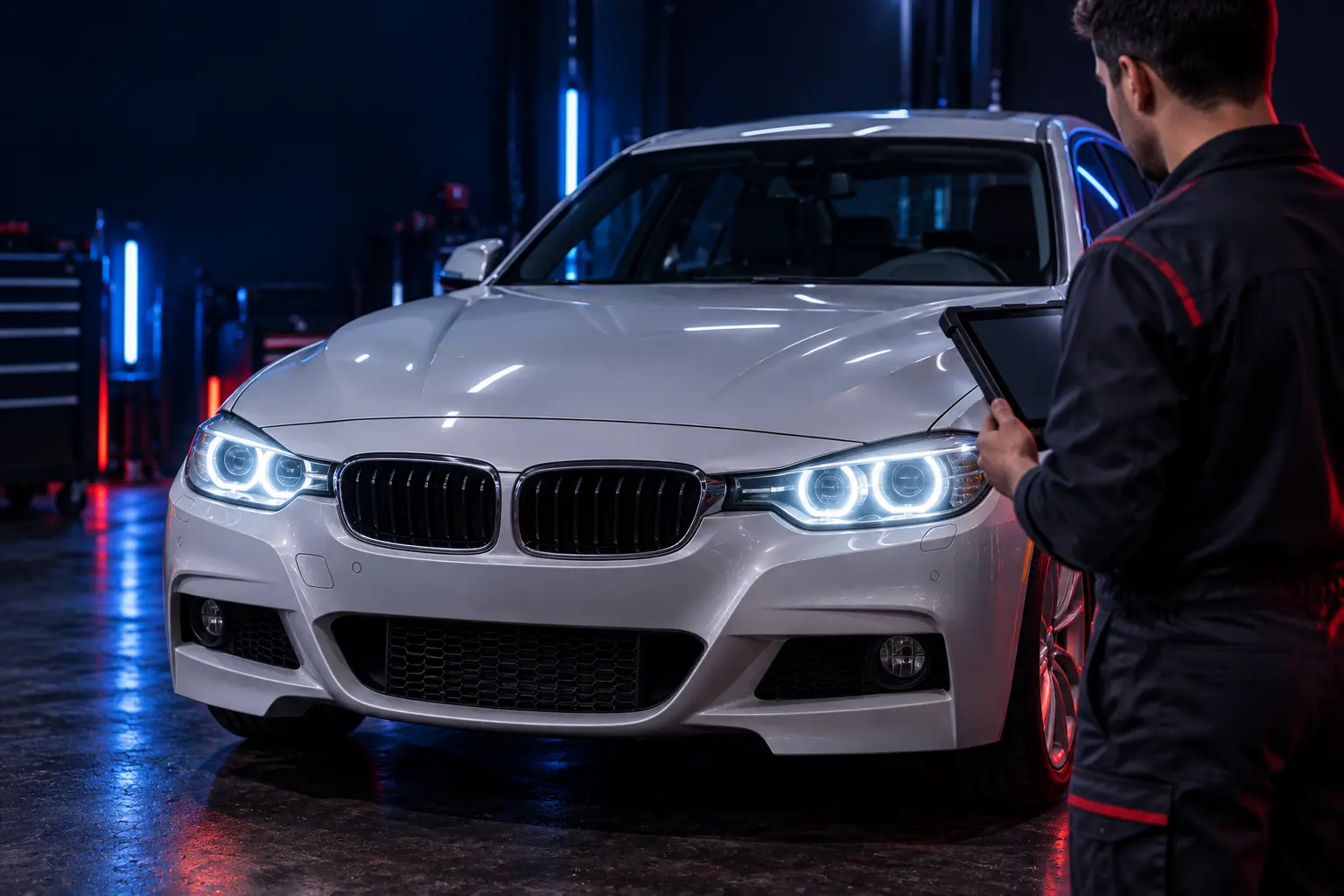

5 · ValidationAfter servicing the FRM, system operation is verified.

Visual case sequence

The illustrations reconstruct the logic observed in the video. They are technical representations and do not replace the model-specific OEM procedure.
