AMERICOPP · TECHNICAL CASE 003

PARK SELECTED.
CONFIRMATION MISSING.

The cluster showed that P was selected, but the system continued warning that the vehicle had to be secured against rolling. Evidence directed diagnosis toward the electronic selector, not a destroyed transmission.

SystemBMW electronic selector

SymptomSecure-vehicle warning

InterventionInternal selector repair

The diagnostic contradiction

The lever allowed gear positions to be selected and the cluster displayed P. However, the equivalent of “secure vehicle against rolling” remained. This contradiction shows that displaying Park and confirming every internal Park condition are not necessarily the same signal.

Observed fact: the fault was located inside the selector assembly and its internal mechanism was serviced. The video does not demonstrate an internal mechanical transmission failure.

Safety: while this warning is present, always apply the parking brake. Do not rely only on the P indicator.

Diagnosis and repair sequence

1 · SymptomPark visible with the warning active.

2 · CorrelationThe indicated position does not match the expected confirmation.

3 · AccessProtected console disassembly.

4 · FindingDeteriorated internal metal element.

5 · ValidationReassembly and Park verification.

Visual case evidence

The illustrations reconstruct the observed sequence: warning, selector diagnosis, disassembly, internal component and validation. The mechanism slide is a technical representation, not a dimensional photograph of the component.

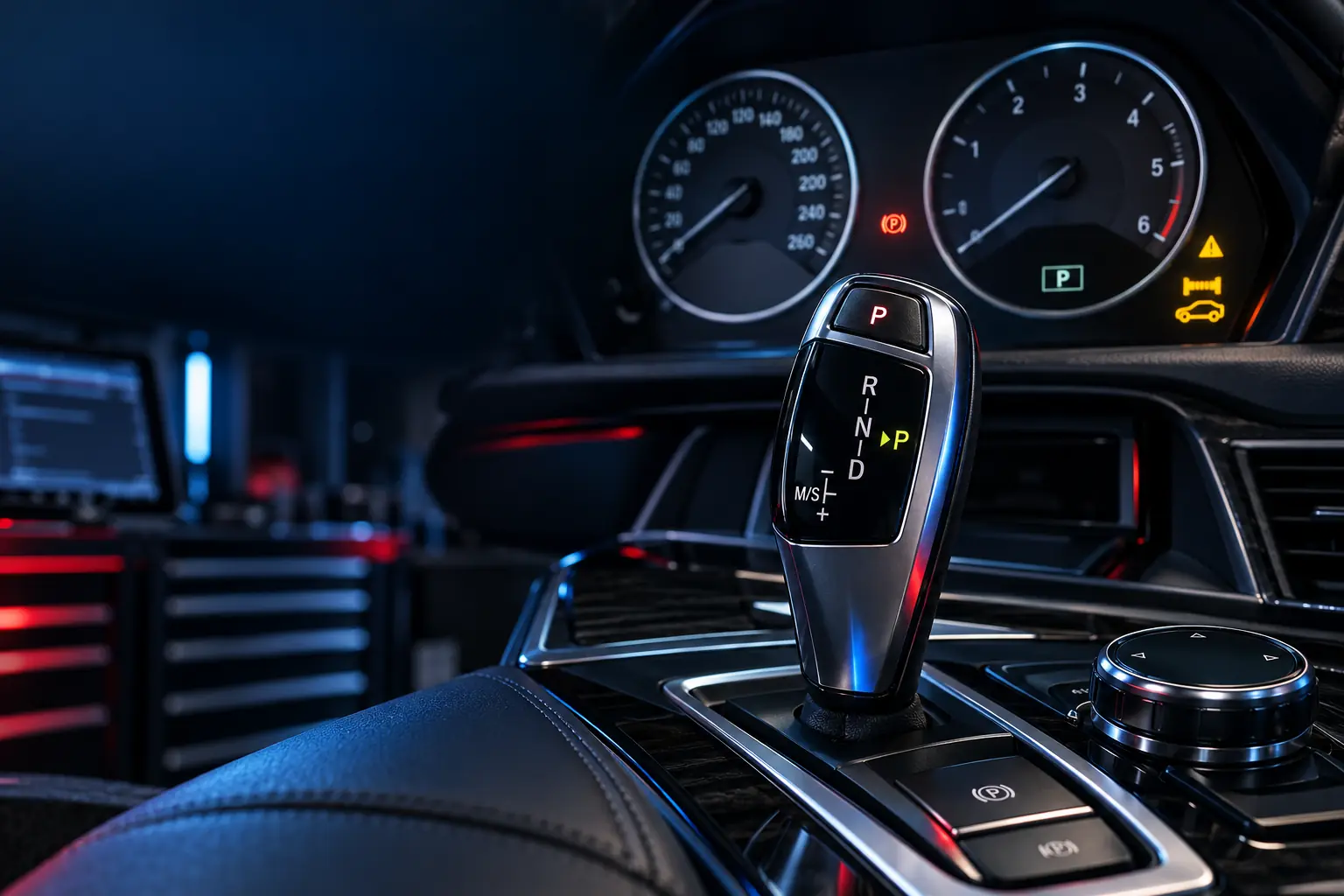

BMW electronic selector with Park selected and warning active — **1 · The symptom**Park appears selected, but the warning remains.

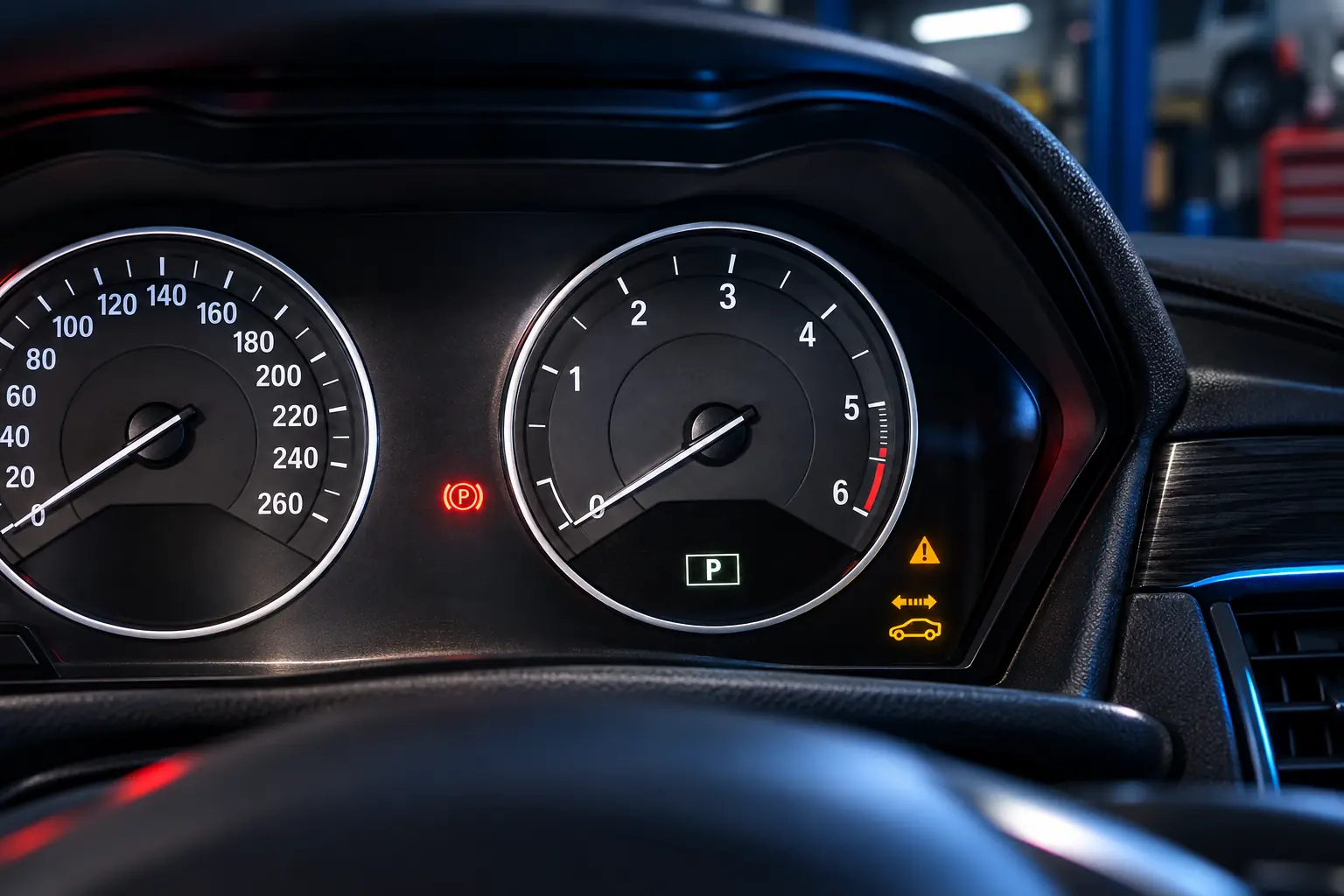

BMW cluster showing Park and a secure-vehicle warning — **2 · Contradictory signals**Displaying P alone does not confirm the complete internal state.

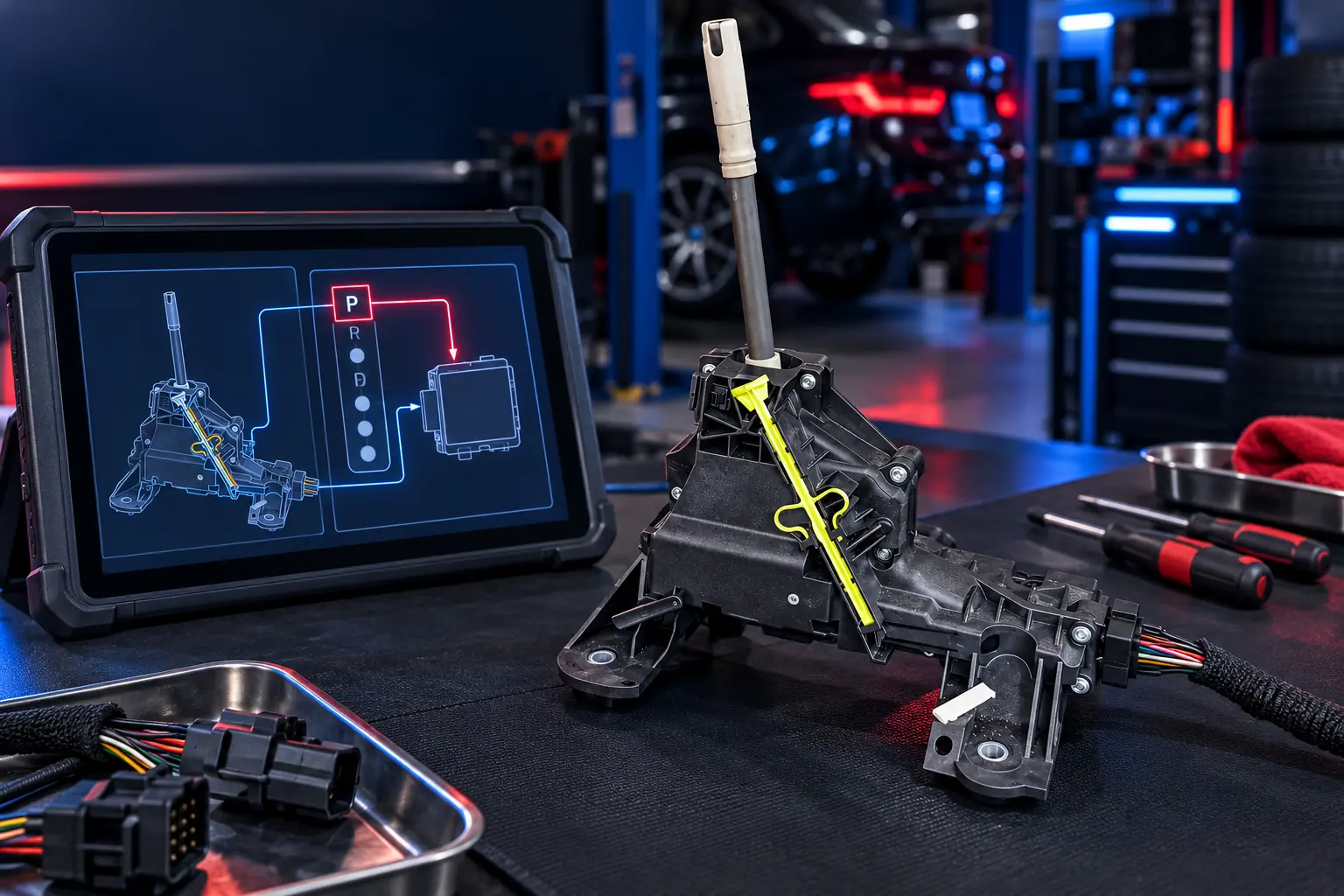

BMW electronic selector assembly on the diagnostic bench — **3 · Directed diagnosis**Analysis focuses on the selector and its Park signal.

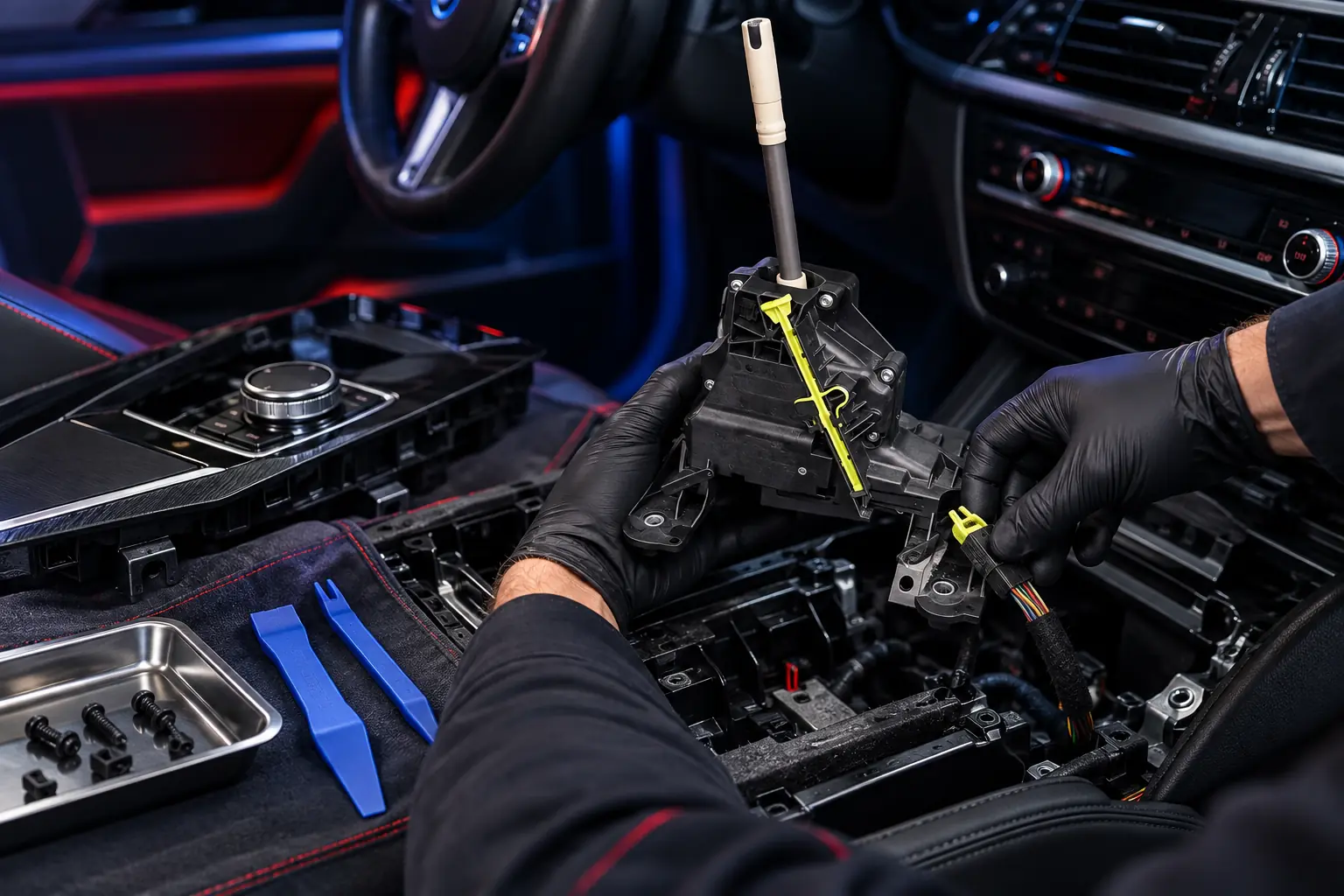

Professional removal of the electronic selector from the center console — **4 · Access al conjunto**Controlled disassembly, protected connectors and organized fasteners.

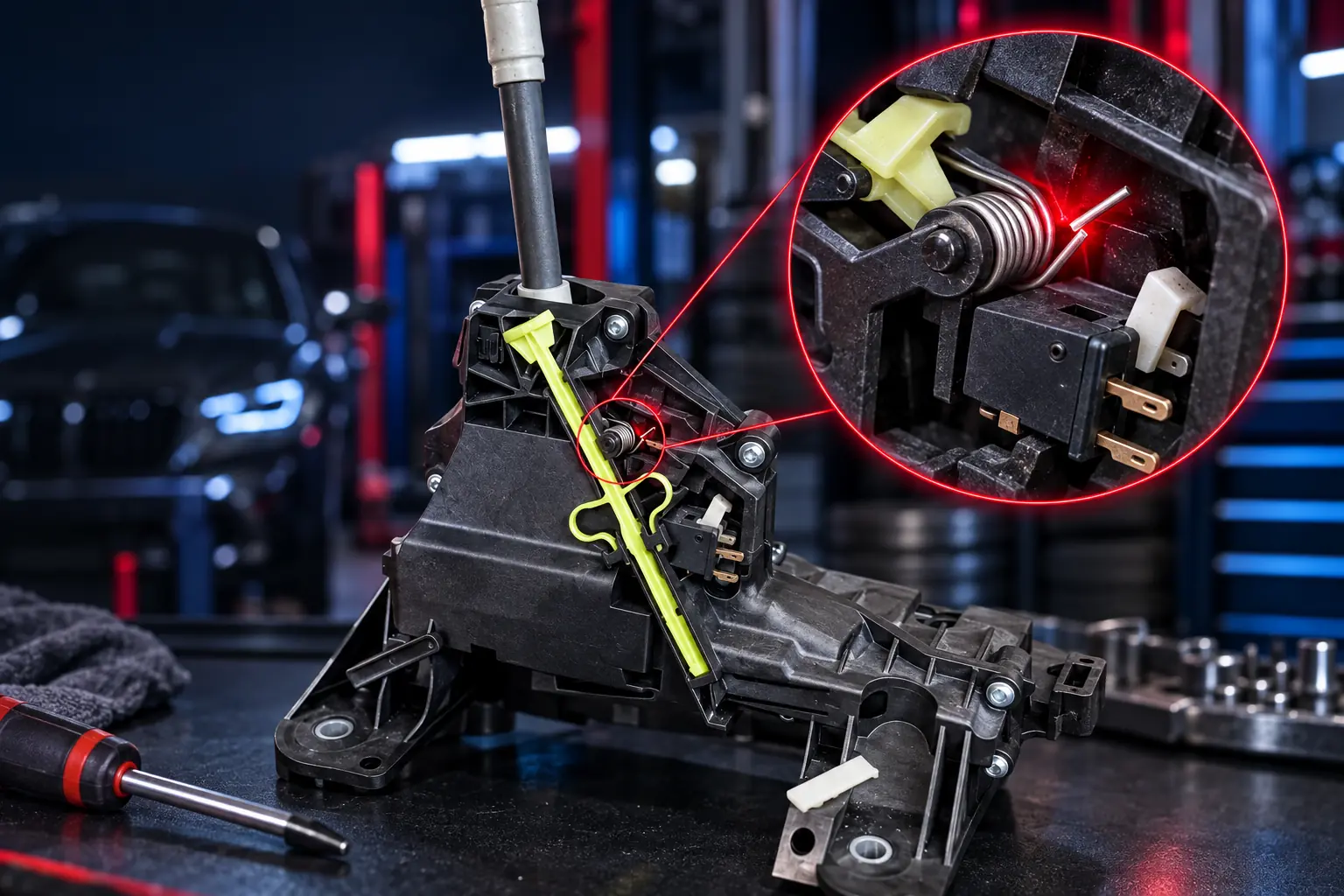

Technical representation of the selector internal spring and detector — **5 · Failure point**Deteriorated internal return or actuation element.

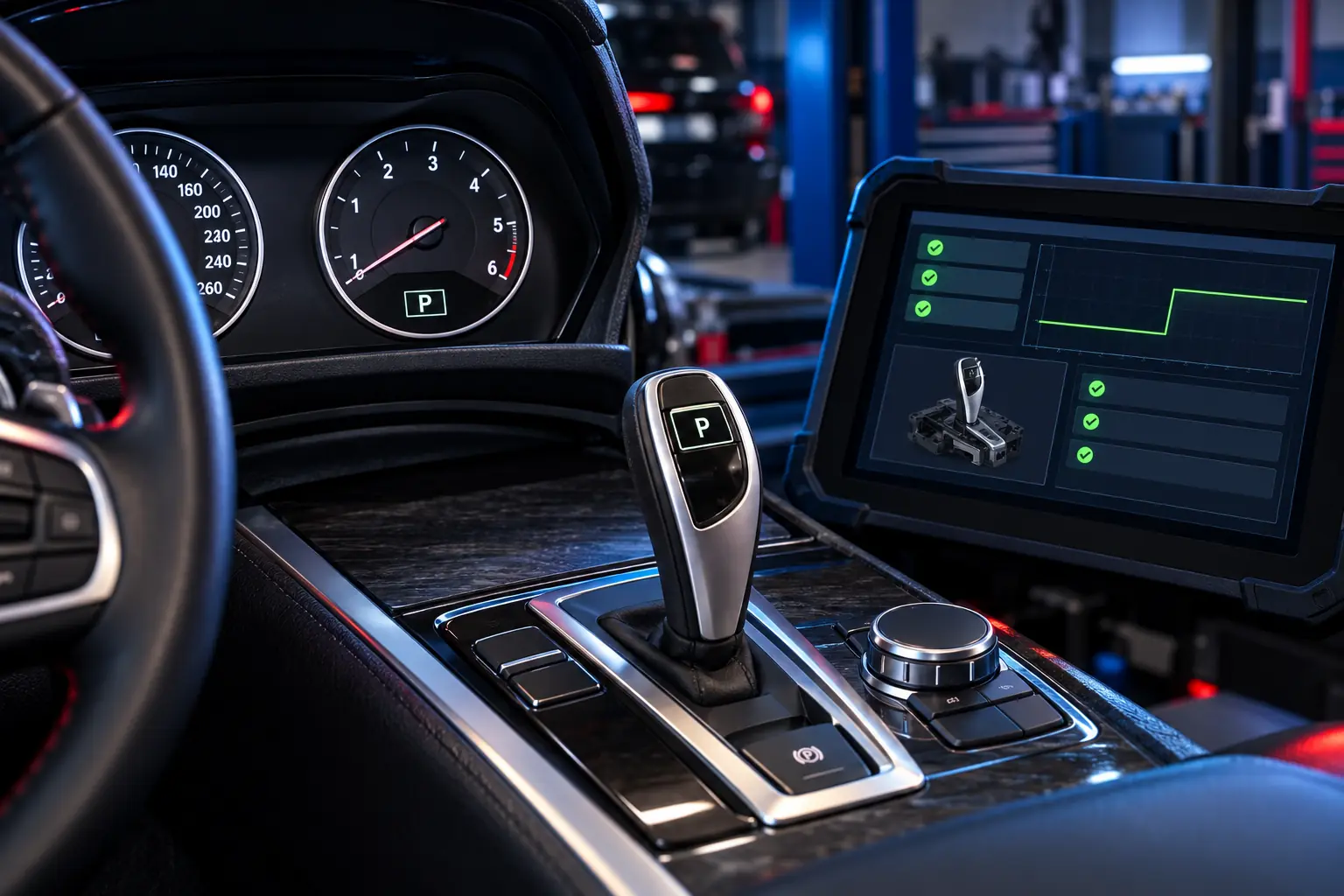

Repaired BMW selector with Park validated — **6 · Verification**Reassembly, Park confirmation and absence of the warning.

1 / 6

Swipe left or right · use the arrows or keyboard.

What must be checked during diagnosis

Before condemning the complete selector, read the related modules—including GWS and EGS depending on platform—and review position, lock and power-supply states. The DTCs, model, year and VIN are not readable in the original material, so they are not published as confirmed facts.

ScanComplete DTCs and frequency

Record fault memory and occurrence conditions.

Live dataActual P status

Compare lever position, lock and internal confirmations.

ValidationMultiple cycles and final test

Confirm that the warning does not return.

Diagnose before replacing.
A Park warning alone does not prove a failed transmission.
